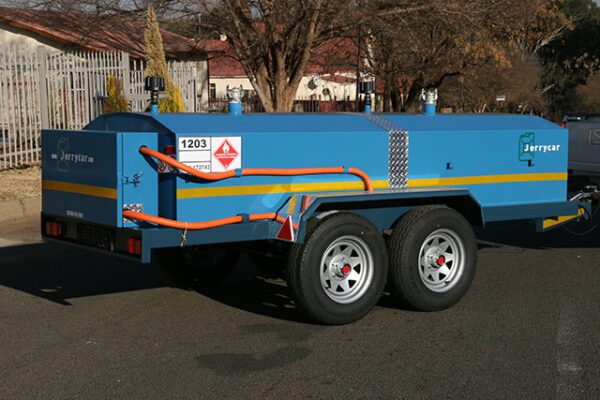

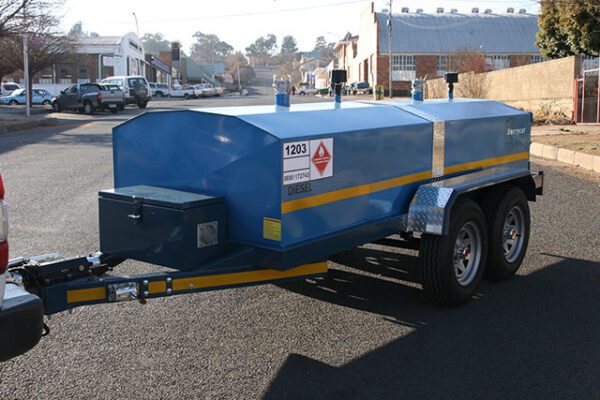

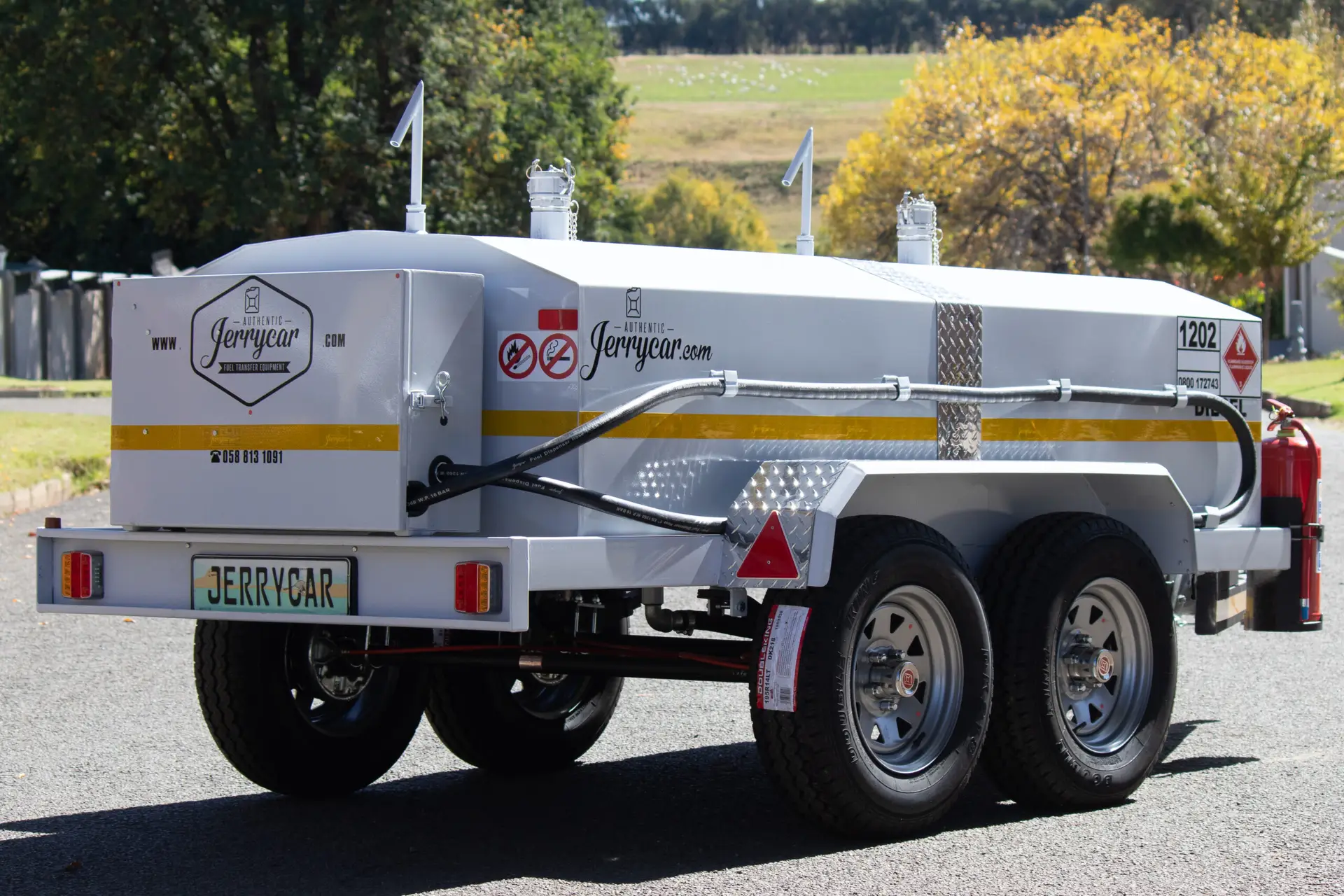

Jerrycar Bowser 2200 (Braked)
Jerrycar custom manufactures a wide variety of high-quality tailors at affordable prices. Each trailer comes with a fully equipped pump station including the pump, meter, filter and hose. Our customers also have the luxury of choosing the colour of their trailer (subject to availability).
Fuel Types – Diesel, Petrol, Avgas, Mogas, Paraffin and JetA1
Available sizes – 630L, 1100L, 1800L and 2200L
Also available in 1800L – VIEW 1800L BOWSER HERE
Specifications
| Specifications – Jerrycar model 1800 – 1850 litre tanker | |
| Chassis and suspension | |
| Structure and draw bar: | 100mm x 50mm x 3mm Rectangular tubing |
| 4x 8 Blade Spring 685 mm | Capacity 1,500 kg |
| Braked Axle 230 50mm Tandem | Capacity 3,600 kg |
| Coupling device: | Alko Trailco Ball Coupler – capacity 2,350 kg |
| 4 x 14’’ Rims (silver/white) Tyres 185/195 x 14C | (1,700 kg/out rating on both tyres)
|
| Paint: | Etch primer/Stone chip all over/2K Top Cote |
| Vehicle dimensions | |
| Empty weight of vehicle: | 700 Kg |
| Width: | 1,810mm |
| Height: | 1,300mm (Excl. breather) 0,750m |
| Height with breather: | 1,600mm |
| Length with draw bar: | 4,410mm |
| Draw bar length: | 1,040mm |
| Track: | 1,600mm |
| Tank | |
| Capacity: | 2,200 litre with breather- pressure tested at 50kpa |
| Wall thickness: | 3.0mm mild steel |
| Inlet: | 50mm Adaptor with lockable Quick coupler Cap |
| Outlet: | 25mm female at back of trailer |
| Paint: | Etch Primer/Stone chip all over/ 2K Top cote |
| Available in following colours: | M/F Red, Ford Blue, Case Red, John Deere Green< Cat Yellow, Landini Blue, etc |
| Fuel | Diesel | Paraffin | Petrol | Avgas | Jeta1 |
| Tank – 2 X 1100 Liter Capacity Tanks | Mild Steel 3mm | 304 2,5mm Stainless Steel | 304 2,5mm Stainless Steel | 304 2,5mm Stainless Steel | 304 2,5mm Stainless Steel |
| Status | Approved | Non-Aviation | Non-Aviation | Aviation Approved | Aviation Approved |
| Fire Extinguisher | Optional | Yes | Yes | Yes | Yes |
| Spare Wheel And Holder | Optional | Optional | Optional | Optional | Optional |
| Pump | Ad/Dc/Hand Pump | Explosion Proof Ac/Dc and Hand Pump | Explosion Proof Ac/Dc and Hand Pump | Explosion Proof Ac/Dc and Hand Pump | Explosion Proof Ac/Dc and Hand Pump |
| Hoses | Standard Petroleum 4m | Standard 4m | Standard 4m | Aviation Approved 4m | Aviation Approved 4m |
| Filters | Dirtb And Water Sep Filter | Water Abs | Water Abs | Parker Velcon Aquacon Aviation | Parker Velcon Aquacon Aviation |
| Meters | 3 Digit Jerrycar | Explosion Proof 3 Digit | Explosion Proof 3 Digit | Explosion Proof 3 Digit | Explosion Proof 3 Digit |
| Nozzles | Manuel Or Autom | Manuel Or Auto | Manuel Or Auto | Zvf25 Aviation | Zvf 25 Aviation |
| Maintenance Free Battery And Charger | Optional | Optional | Optional | Optional | Optional |
| Inspection Hatch | Optional | Optional | Optional | Optional Required By Some Airports | Optional Required By Some Airports |
| Bonding Reel | Optional | Yes | Yes | Yes | Yes |
| Breather | Standard Or Donaldson Breather Or Gl3 Gilbarco | Donaldson | Donaldson | Donaldson | Donaldson |
| Drain Tap | No | Yes | Yes | Yes | Yes |
*Available as Tank on Frame to be Fitted
*Available in Various Colours of Choice
