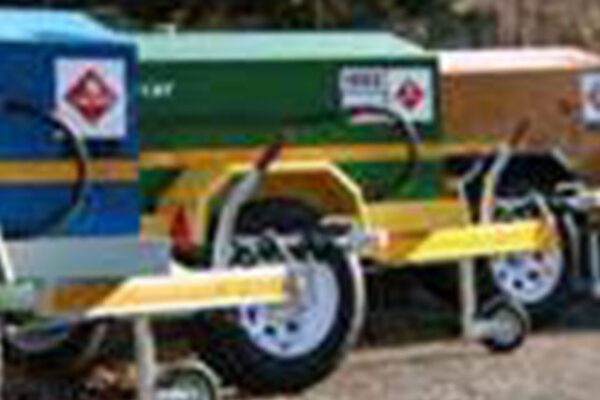

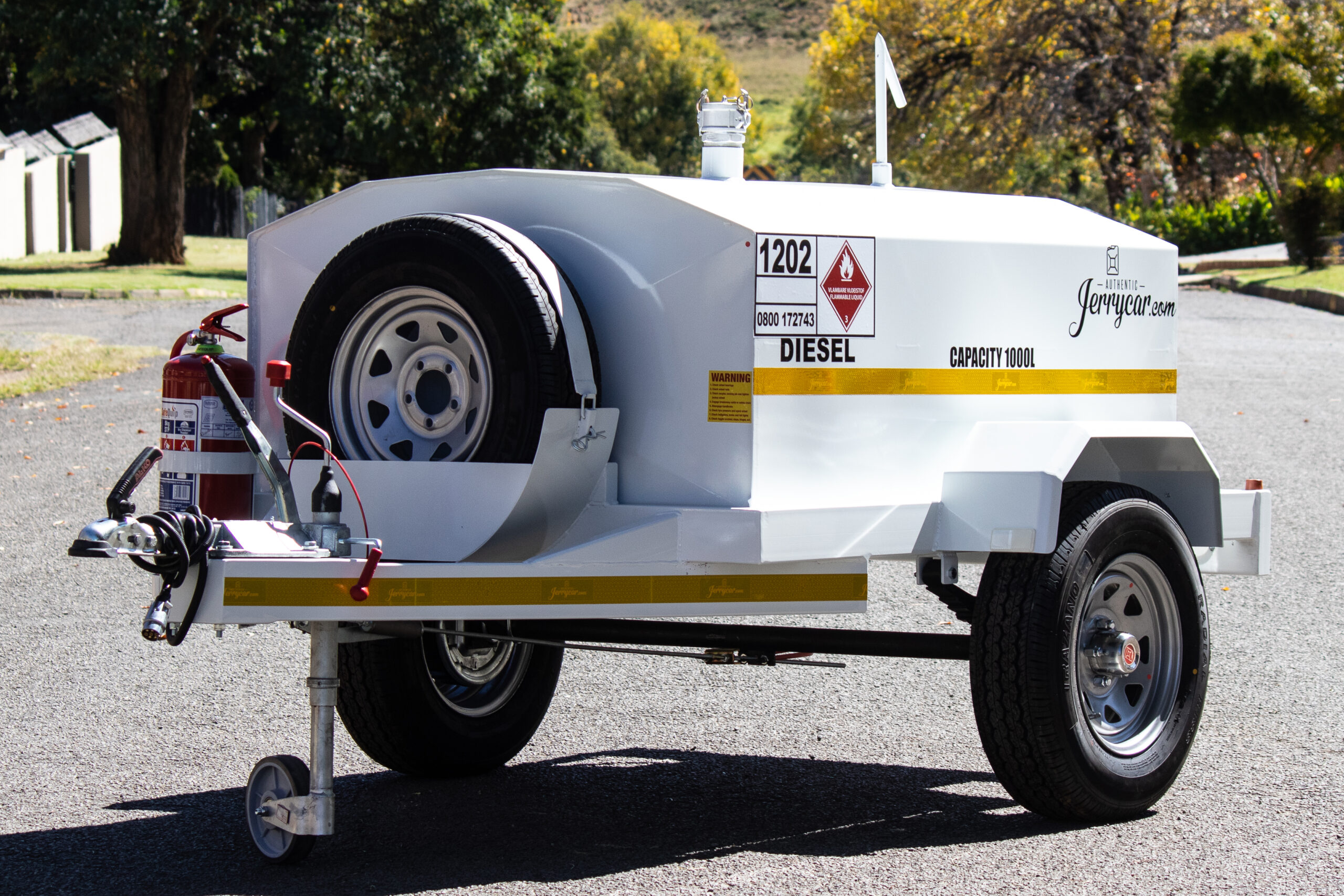

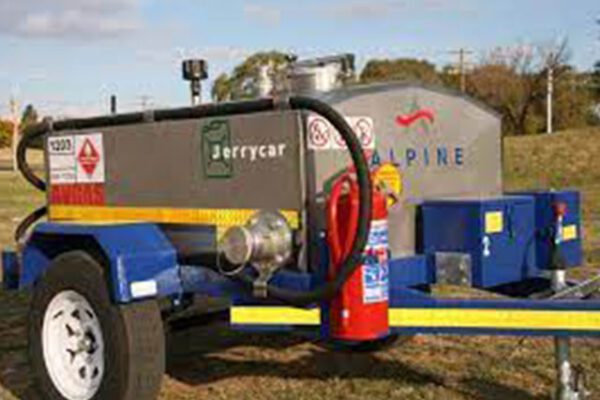

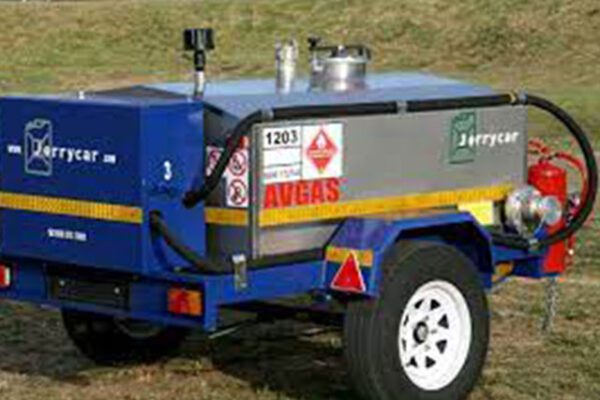

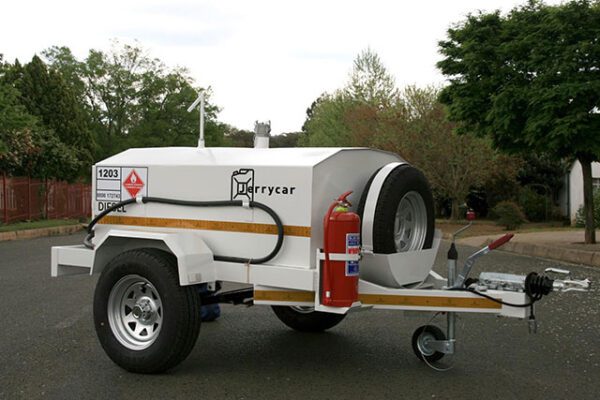

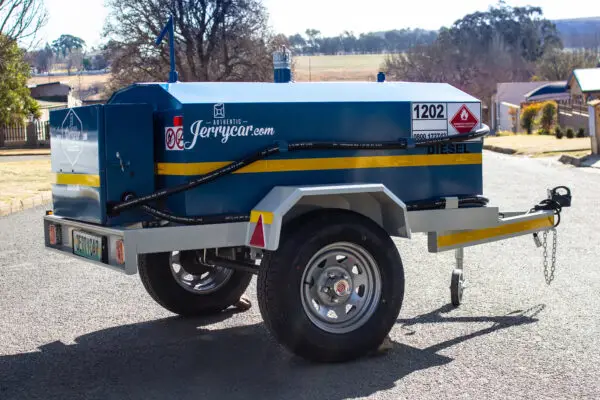

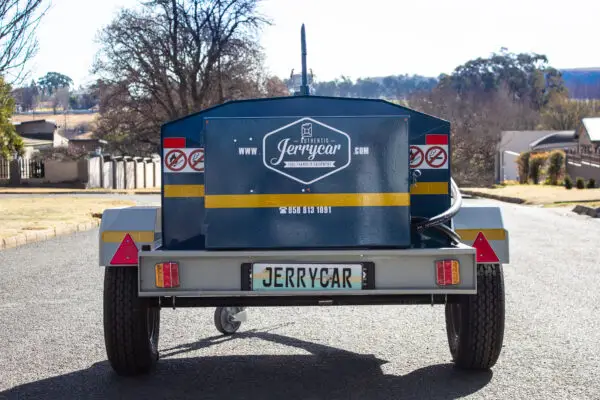

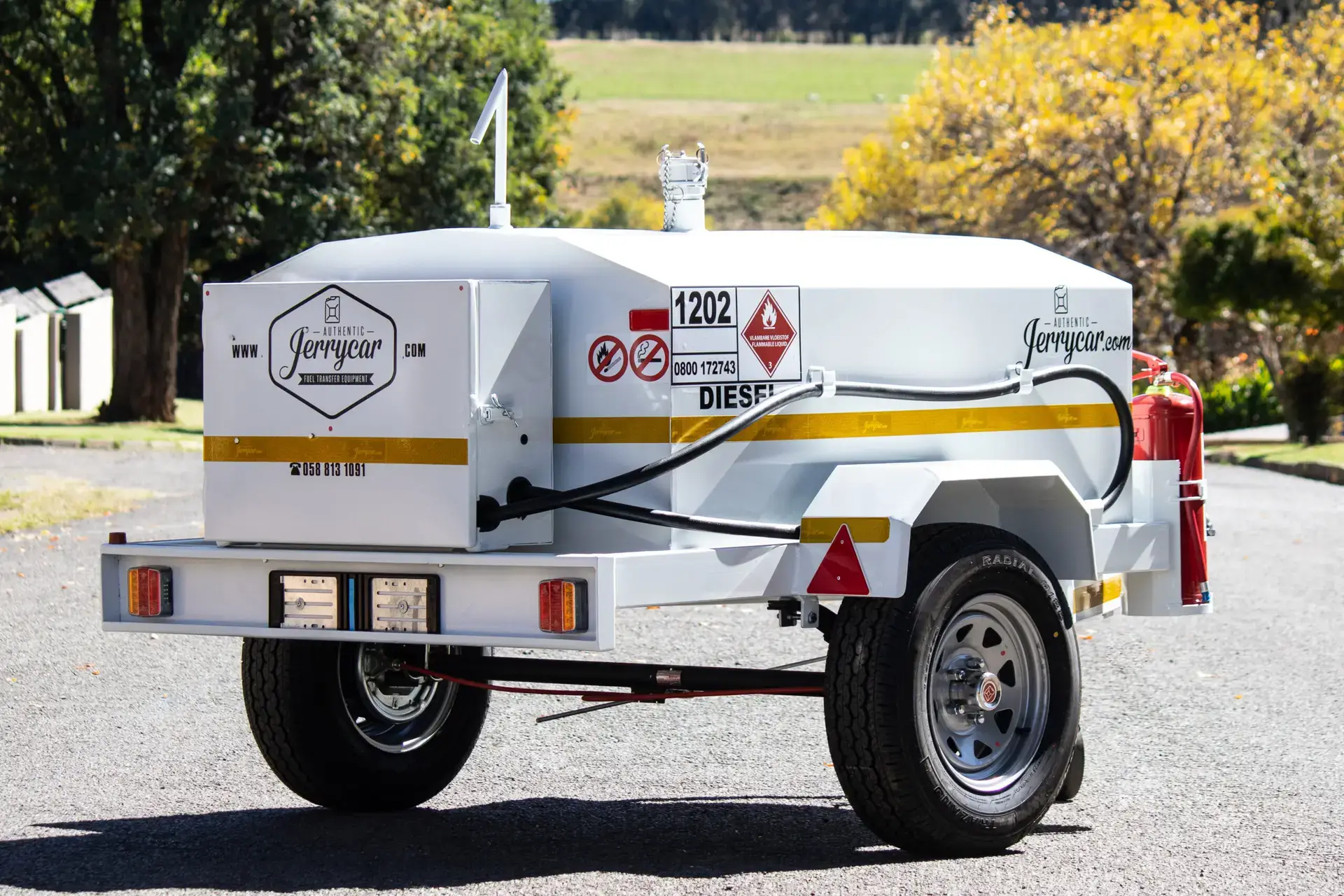

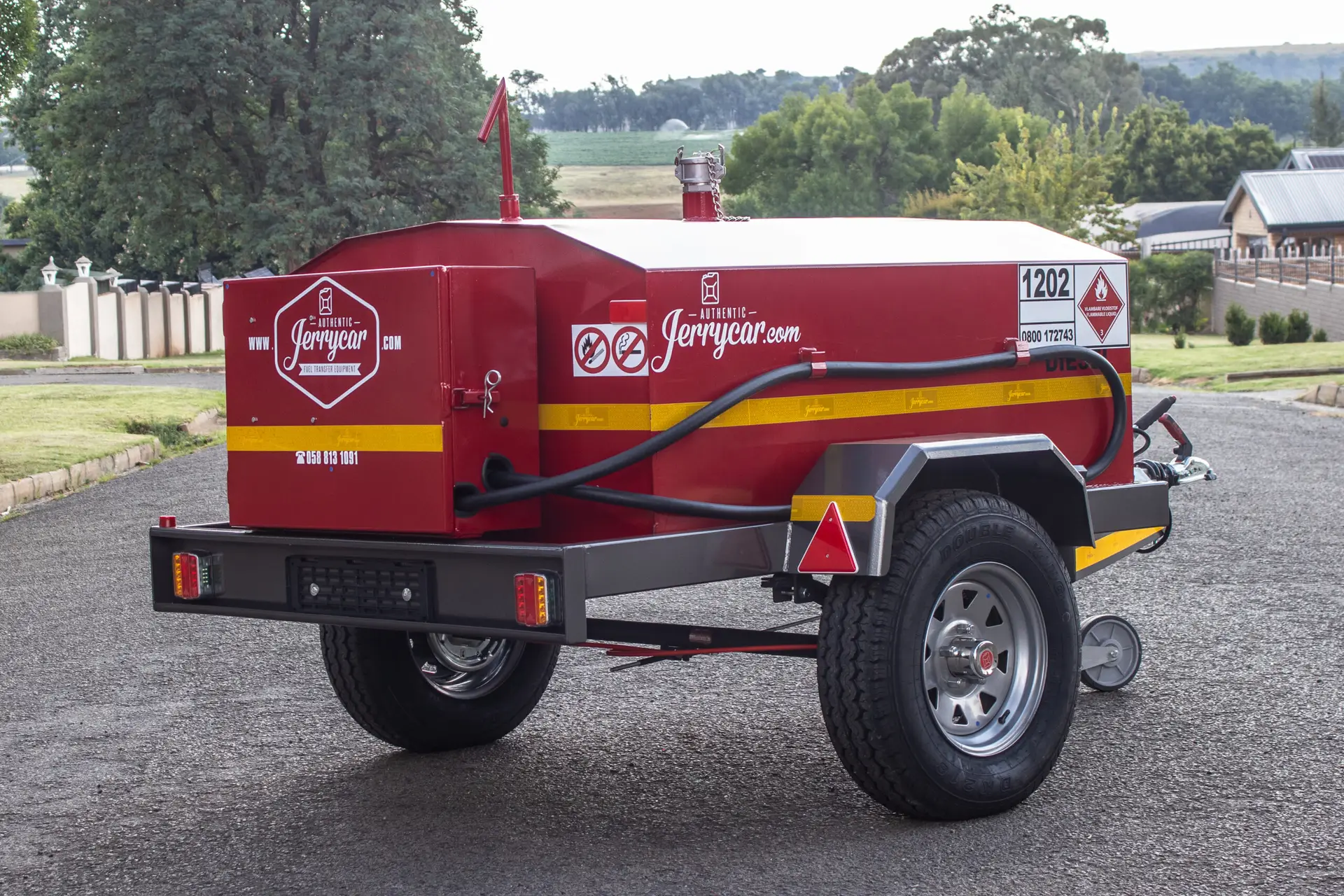

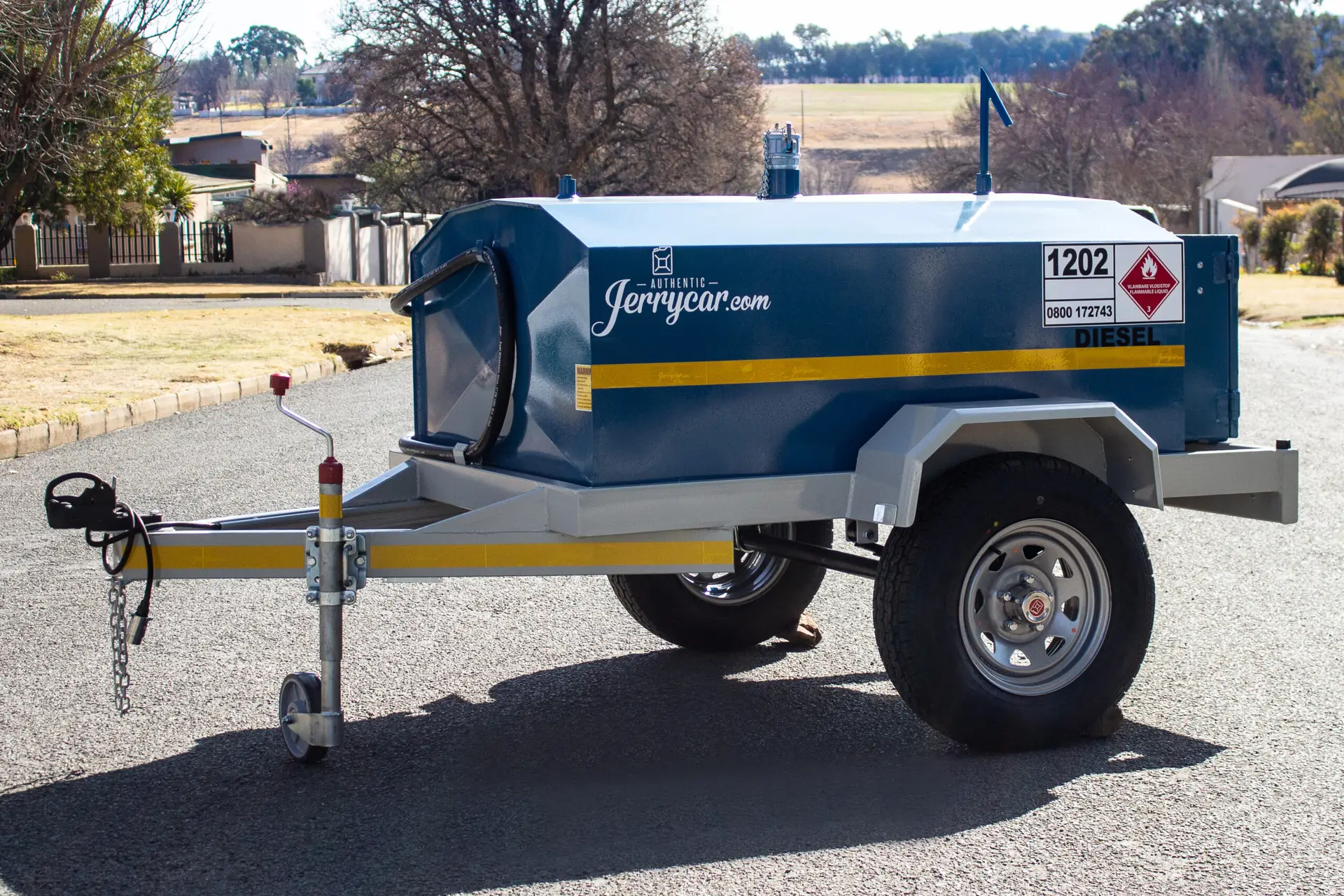

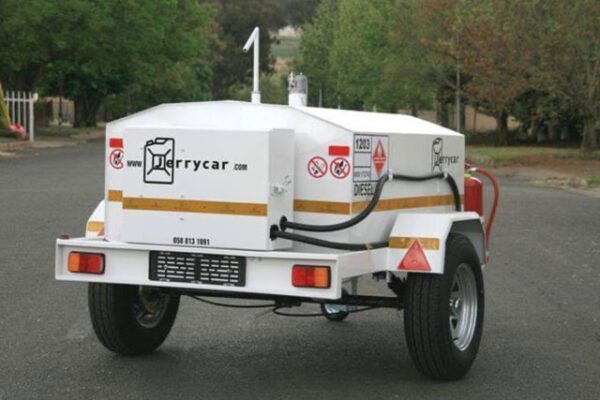

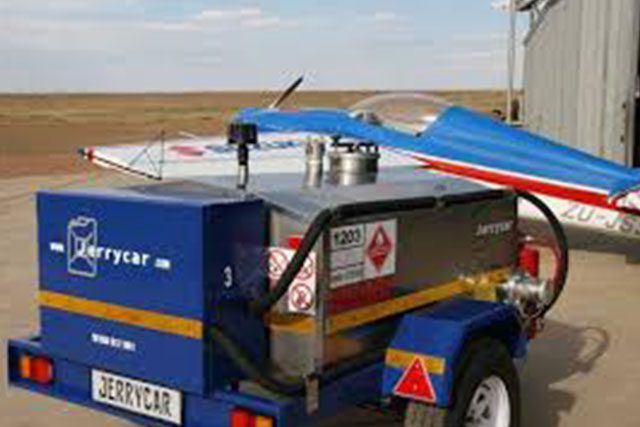

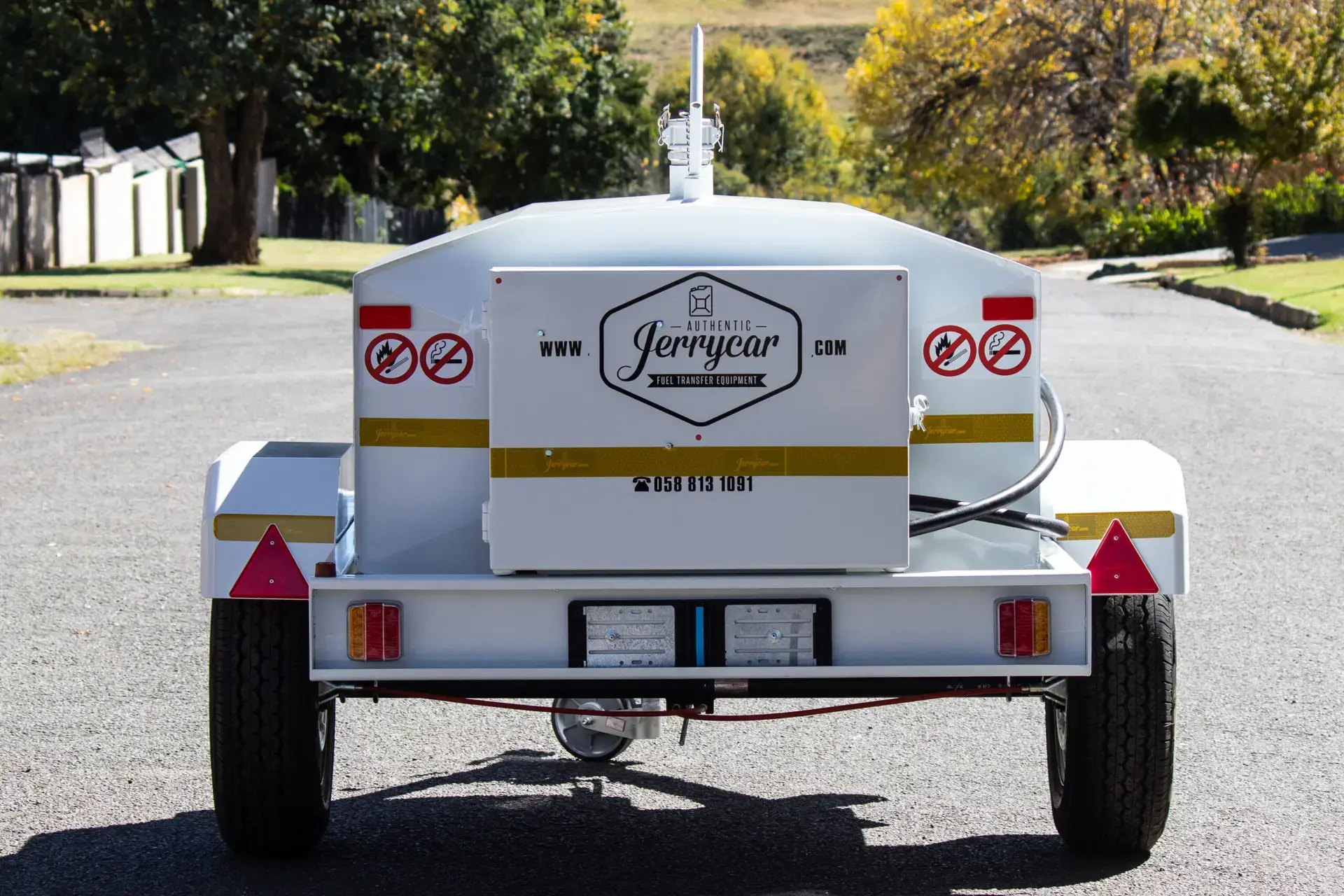

Jerrycar Bowser 1100 (Braked)

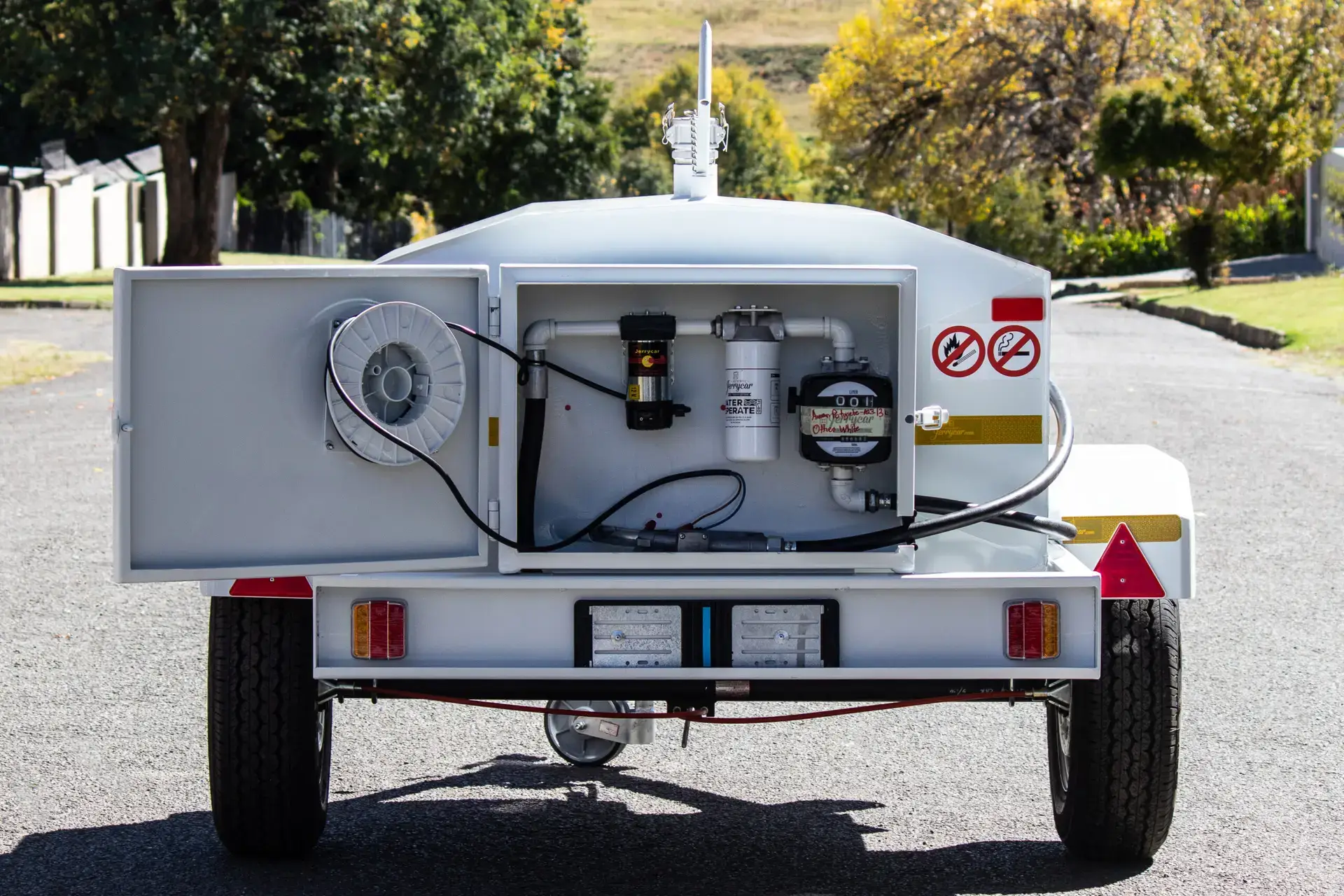

Jerrycar custom manufactures a wide variety of high-quality tailors at affordable prices. Each trailer comes with a fully equipped pump station including the pump, meter, filter and hose. Our customers also have the luxury of choosing the colour of their trailer (subject to availability).
Fuel Types – Diesel, Petrol, Avgas, Mogas, Paraffin and JetA1
Available sizes – 630L, 1100L, 1800L and 2200L
Also available in unbraked – view unbraked 1100L bowser
Specifications
| Specifications – Jerrycar model 1100 – 1130 litre tanker | |
| Chassis and suspension | |
| Structure and draw bar: | 100mm x 50mm x 3mm rectangular tubing |
| 2 x 5 blade spring 685mm: | Capacity 1500kg |
| Braked axle 230 50 5/114: | Capacity 1800kg |
| Coupling device: | Ball coupler – capacity 2350kg |
| Rims 14″ tyres 185 x 14C: | (1700kg out rating on both tyres) |
| Paint: | Etch primer/stone chip all over/2K Top Cote |
| Vehicle dimensions | |
| Empty weight of vehicle: | 400kg |
| Width: | 1810mm |
| Height: | 1230mm (breather and cap excluded) |
| Height with breather: | 1600mm |
| Length with draw bar: | 3050mm |
| Draw bar length: | 1040mm |
| Track: | 1600mm |
| Tank | |
| Capacity: | 1130 litre with breather – pressure tested at 50kpa |
| Wall thickness: | 3mm steel |
| Inlet: | 65mm adaptor with quick coupler cap |
| Outlet: | 25mm female at back of trailer |
| Paint: | Etch primer/stone chip all over/2K Top Cote |
| Available in following colours: | M/F red, Ford blue, Case red, John Deere green, Cat yellow, Landini blue, white, etc. |
| Fuel | Diesel | Paraffin | Petrol | Avgas | Jeta1 |
| Tank – 1100 Liter Capacity | Mild Steel 3mm | 304 2,5mm Stainless Steel | 304 2,5mm Stainless Steel | 304 2,5mm Stainless Steel | 304 2,5mm Stainless Steel |
| Status | Approved | Non-Aviation | Non-Aviation | Aviation Approved | Aviation Approved |
| Fire Extinguisher | Optional | Yes | Yes | Yes | Yes |
| Spare Wheel and Holder | Optional | Optional | Optional | Optional | Optional |
| Pump | Ad/Dc/Hand Pump | Explosion Proof Ac/Dc and Hand Pump | Explosion Proof Ac/Dc and Hand Pump | Explosion Proof Ac/Dc and Hand Pump | Explosion Proof Ac/Dc and Hand Pump |
| Hoses | Standard Petroleum 4m |
Standard 4m | Standard 4m | Aviation Approved 4m | Aviation Approved 4m |
| Filters | Dirt and Water Sep Filter | Water Abs | Water Abs | Parker Velcon Aquacon Aviation |
Parker Velcon Aquacon Aviation |
| Meters | 3 Digit Jerrycar | Explosion Proof 3 Digit | Explosion Proof 3 Digit | Explosion Proof 3 Digit | Explosion Proof 3 Digit |
| Nozzles | Manual Or Auto | Manual Or Auto | Manual Or Auto | Zvf25 Aviation | Zvf 25 Aviation |
| Maintenance Free Battery And Charger | Optional | Optional | Optional | Optional | Optional |
| Inspection Hatch | Optional | Optional | Optional | Optional Required By Some Airports | Optional Required By Some Airports |
| Bonding Reel | Optional | Yes | Yes | Yes | Yes |
| Breather | Standard Or Donaldson Breather Or Gl3 Gilbarco | Donaldson | Donaldson | Donaldson | Donaldson |
| Drain Tap | No | Yes | Yes | Yes | Yes |
*Available as Tank on Frame to be Fitted
*Available in Various Colours of Choice
